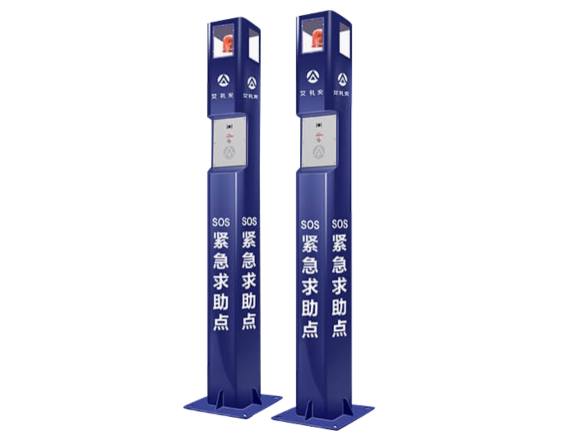

Outdoor One-Touch Emergency Call Box
The video intercom one-touch alarm column system employs an embedded operating system for stable and reliable operation. Featuring a front-mounted emergency assistance alarm button, the device incorporates a red flashing background light with a mechanical alarm button design. Constructed with military-grade protective materials, it withstands extreme temperatures from -20°C to 70°C and heavy rainfall. The surface incorporates a red anti-misoperation button. Upon activation, it instantly transmits precise location data (error ≤1 meter) to the 110 command center, simultaneously initiating flashing police lights and live video streaming. The ring-shaped red background light flashes while emitting an alarm sound to deter offenders. The emergency alarm button is prominently marked with “Emergency Alarm” for easy identification by those seeking assistance. In urgent situations or when consultation is needed, pressing the call button immediately connects the user to the monitoring center operator. The operator can view the scene via the front-facing camera and broadcast announcements.
ProductFeatures
  • One-Touch Emergency Alarm
    Convenient Trigger Design Instant Response and Synchronization
    01
    One-Touch Emergency Alarm
    Convenient Trigger Design
    The column features a red anti-misoperation button with a protective cover to prevent accidental activation, allowing seniors and children to press it quickly.
    Second-Level Response Coordination
    Upon activation, the signal transmits to the 110 command center within seconds, directly coordinating with the emergency rescue system.


  • Precision Positioning and Tracking
    High-Precision Positioning Technology Dynamic Location Sharing
    02
    Precision Positioning and Tracking
    High-Precision Positioning Technology
    Integrated BeiDou/GPS dual-mode positioning with real-time location uploads during alerts, achieving accuracy within 1 meter.


    Dynamic Location Sharing

    Positioning data synchronizes with GIS systems, annotating on-site environments to enable rapid rescue team deployment.


  • High-definition video surveillance
    All-scenario imaging Alarm-triggered recording
    03
    High-definition video surveillance
    All-Scene Imaging
    Equipped with a 2-megapixel camera supporting infrared night vision, it captures clear footage even in rainy or foggy conditions.


    Alarm-Triggered Recording

    Automatically activates recording upon alarm detection, simultaneously capturing on-site footage for investigation and evidence preservation.


  • Two-way voice intercom
    Clear Communication Assurance Remote Guidance and Rescue
    04
    Two-way voice intercom
    Clear Call Assurance
    Built-in noise-canceling microphone and high-power speaker enable full-duplex communication even in noisy environments.


    Remote Guidance and Rescue

    Command centers can use the device's public address system to provide real-time guidance and verbal reassurance to emergency callers.


  • Audible and visual warning deterrent
    Multi-dimensional warnings Deterrent effect on security
    05
    Audible and visual warning deterrent
    Multi-dimensional Alarms
    Equipped with high-brightness LED warning lights and high-decibel sirens at the top, which activate simultaneously during alerts.


    Deterrent Effect

    Flashing red and blue warning lights combined with siren sounds alert nearby residents and deter criminals.


  • Emergency Power Supply Assurance
    Dual-power design Long-lasting battery life
    06
    Emergency Power Supply Assurance
    Dual Power Supply Design
    Utilizes a primary grid power and secondary solar power supply mode, enabling off-grid operation in remote areas.


    Long-Term Standby Capability

    Equipped with a UPS backup power supply, maintaining 15 days of standby operation during continuous rainy weather.


Product Specifications
  • Device Power Supply
    DC12V
  • Device Power Consumption
    ≤5W
  • Operating Temperature
    -30℃~70℃
  • Operating Humidity
    10%~90%
  • Network Port
    1x RJ45, 10/100M auto-negotiating Ethernet port
  • Communication Methods
    Network, Network + 4G Communication (optional)
  • Alarm Output
    DC12V 200mA
  • Camera
    Built-in high-sensitivity omnidirectional microphone, built-in speaker
  • Audio Parameters
    -20℃~ 55℃
  • Operating System
    Embedded Linux OS
  • Relative Humidity
    Wall-mounted & Rotating bracket mounting (optional)
  • Color
    Black/White
  • Overall Dimensions
    184.85mm X 275.38mm X 124.56mm
  • Package Dimensions
    237mm*350mm*182mm
  • Outer Carton Dimensions
    578mm × 375mm × 500mm (6 units per carton)
