HY-G01 Wall-Mounted Speaker
HY-G01

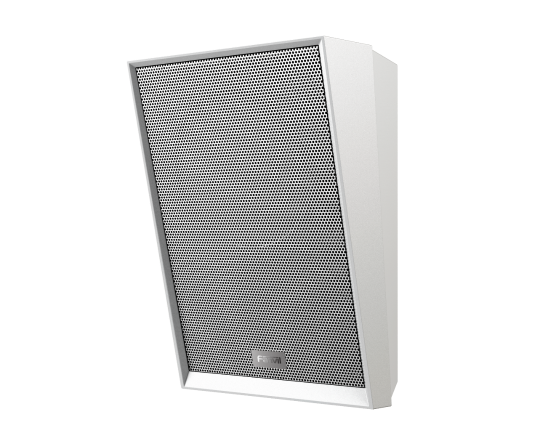

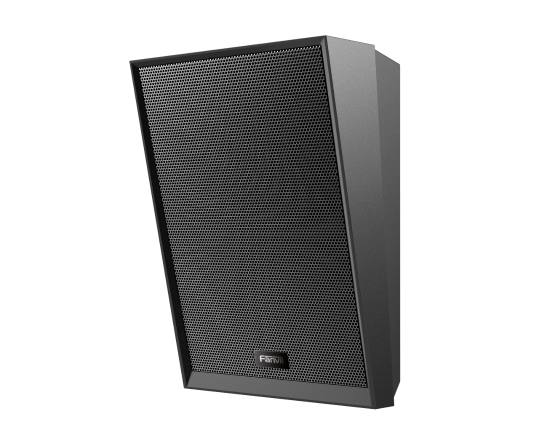

The HY-GO1 Wall-Mounted Speaker is a commercial-grade IP audio terminal integrating broadcast and intercom functions. It supports priority management for 20 multicast zones and utilizes G.722 and Opus codecs to deliver high-definition call audio quality. It also supports lossless MP3 and WAV audio broadcasting, and can be paired with an external 15W passive speaker for enhanced amplification. The system offers strong compatibility and scalability, functioning independently as an audio system or seamlessly integrating into unified communications, video surveillance, public address/intercom, access control, digital signage, and fire alarm systems for unified configuration and operation.

Downloads

Contact Us
ProductFeatures
  • Scheduled Broadcast
    Audio File Settings Broadcast Sound Quality
    01
    Scheduled Broadcast
    Audio File Settings
    Built-in audio files allow configuration of volume, repeat count, and interval time. Pre-configure audio and playback parameters to automatically broadcast at specified times according to preset rules, meeting regular audio playback needs.
    Broadcast Audio Quality
    Supports high-definition intercom and lossless music broadcasting.


  • Live Broadcast
    Multiple Trigger Methods Flexible Integration
    02
    Live Broadcast
    Multiple Trigger Methods
    Trigger built-in audio for real-time broadcasting via HTTP API, input ports, and remote SIP calls. Flexible triggering methods enable rapid response to ad-hoc or urgent broadcasting needs, ensuring timely audio playback.


    Flexible Integration

    Supports standard SIP protocol, HTTP API, short-circuit input/output, and video linkage for seamless integration with third-party systems.


  • Partitioned Multicast
    Partition Management Easy to Manage
    03
    Partitioned Multicast
    Zone Management
    Supports 20 zones, enabling customizable implementation of multicast for different zones. Zones can be divided based on spatial layout or usage scenarios to precisely deliver audio to specific areas, avoiding broadcast interference and enhancing targeting.


    Easy Management

    Supports device management via Web, DM software, FDMCS, and the Directional Broadcast Intercom APP.


  • Intercom Monitoring
    Two-way Communication Function Integration
    04
    Intercom Monitoring
    Two-Way Communication
    Built-in microphone enables two-way intercom and self-test monitoring. It can initiate intercom communication and monitor speaker audio status for daily interactions and device self-checks, ensuring the audio system operates normally.


    Function Integration

    Combines paging broadcast, scheduled broadcast, emergency broadcast, two-way intercom, self-test/monitoring, and priority management functions into one system.


  • Video Synchronization
    Audio-Visual Coordination
    05
    Video Synchronization
    Audio-Visual Coordination
    Integrate with IP cameras to instantly view live footage. Synchronize video feeds during broadcasts, combining audio announcements with video surveillance. Ideal for scenarios requiring audiovisual integration, such as security management and incident tracing.


  • External speakers
    Expand Connections Diverse Modes
    06
    External speakers
    Expand Connectivity
    Supports external 8Ω 15W passive fixed-impedance speakers and directional subwoofers (A212A/A212T), expanding audio output ports. Additional speakers can be connected based on space size and audio coverage requirements to extend broadcast range.
    Multi-Mode Operation
    Serverless mode, unified communications mode, directional broadcast intercom system mode, and external linkage mode.


Product Specifications
  • IP Mode
    IPv4/IPv6/IPv4&IPv6
  • IP Acquisition Method
    Static IP Configuration / DHCP / PPPoE
  • Virtual Private Network (VPN)
    L2TP / OpenVPN
  • Codecs
    G.711A/U, G.729A/B, iLBC, G.723, G.726-32K
  • DTMF
    In-band, Out-of-band (RFC2833/SIP INFO)
  • Speaker
    5" Coaxial Tweeter
  • Status Indicator
    Blue, Green, Cyan, Customizable
  • DC Input
    DC 24V/2A
  • Operating Temperature
    -20℃~ 55℃
  • Storage Temperature
    -30℃~ 60℃
  • Relative Humidity
    Wall Mount & Swivel Bracket Mount (Optional)
  • Color
    Black/White
  • Overall Dimensions
    184.85mm X 275.38mm X 124.56mm
  • Package Dimensions
    237mm*350mm*182mm
  • Outer Carton Dimensions
    578mm × 375mm × 500mm (6 units per carton)
