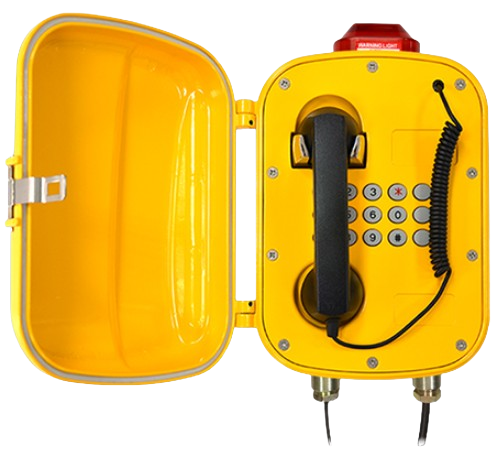

Waterproof, Dustproof, Explosion-Proof Telephone (IP Network)

HY-DUT02

This IP network waterproof, dustproof, and explosion-proof telephone is engineered for demanding environments. Its housing features a die-cast aluminum alloy body treated with specialized processes for exceptional durability. With an IP67 rating or higher, it effectively resists water splashes and dust ingress, ensuring reliable operation even in high-humidity or dusty locations. It incorporates explosion-proof capabilities, with internal circuitry compliant with relevant explosion-proof standards, ensuring safe operation in environments containing explosive gases. Supporting standard IP protocols, it seamlessly integrates into networks for clear voice communication. Whether deployed in mines, petrochemical plants, or harsh outdoor areas, it delivers stable performance, providing robust support for emergency communications and daily operations.

Downloads

Contact Us

ProductFunction

Protective Performance and Durability

High-level waterproofing and dustproofing & Impact resistance and corrosion resistance

01

Protective Performance and Durability

High-Grade Waterproof and Dustproof

Features IP68 rating, withstanding high-pressure water jets, immersion, and dust ingress. Explosion-proof rating of Ex ib mb IIC T6 Gb, suitable for explosive gas environments.

Impact-Resistant and Corrosion-Resistant

Features an aluminum alloy die-cast housing (e.g., KN-AT301), stainless steel buttons, and anti-vandal construction. Withstands extreme temperatures from -40°C to 70°C. Passes IK10 impact resistance testing, making it suitable for high-impact environments like docks and tunnels.
SIP Protocol and Network Communication

Standard Protocol Support & Flexible Network Connectivity

02

SIP Protocol and Network Communication

Standard Protocol Support

Compatible with SIP 2.0 (RFC3261) and related protocols, enabling integration with mainstream IP PBX systems (such as Asterisk, 3CX). Supports multi-account registration and provides SRTP encryption to ensure communication security.

Flexible Network Connectivity

Supports Ethernet, PoE power supply (IEEE 802.3af), and integrated 4G modules in select models (e.g., DP92-G series) to meet mobile deployment requirements.
Call and Audio Technology

High-definition voice and noise reduction & Emergency communication function

03

Call and Audio Technology

High-Definition Voice and Noise Reduction

Features a built-in 2W+ speaker and high-sensitivity microphone, supporting full-duplex hands-free calling and AEC echo cancellation (e.g., i16V supports 96ms echo delay cancellation). AI environmental noise filtering technology maintains clear calls even in 100dB noise environments.

Emergency Communication Features

Supports one-touch direct connection to dispatch consoles with auto-answer and broadcast functions. Incoming calls trigger synchronized emergency light alerts. Select models integrate GPS positioning.
Scalability and Intelligent Features

Multi-Interface and Interoperability Capabilities & AI and Automation Applications

04

Scalability and Intelligent Features

Multi-Interface and Interoperability Capabilities

Features short-circuit input/output interfaces (e.g., i16V supports 2 channels) and USB ports (ALE Myriad S supports dual interfaces) for connecting access control systems, cameras, and other devices to enable security system integration.

Background Music Playback

Select models integrate AI voice recognition, supporting keyword-triggered alarms (e.g., “Help!” activates audible/visual alerts) to enhance emergency response efficiency.

Product Specifications

Ingress Protection Rating

IP68, utilising an industrial-grade IP motherboard;
Product Material

Aluminium alloy;
Ingress Protection Rating

IP68；
Product colour

Outdoor Yellow;
External dimensions

320*255*138mm；
Power supply method

220V AC/5V DC ；
Installation method

Wall-mounted;
SIP line

Maximum 2 channels
Network characteristics

LAN/WAN；
DTMF

In-band/RFC2833/SIP info ；
Encoding method

G.711(A/μ) / G.729A/B/AB / G.726 / iLBC / G.722/L16；
DNS SRV

RFC3263；
Firewall

VPN L2TP，DMZ；
SIP protocol

SIP 2.0 ；
IP Call

Supports peer-to-peer calling;
Ambient temperature

-40℃~70℃ ；
Ambient humidity

≥95%；
