HY-01S Enterprise-Grade IP Phone

HY-01S

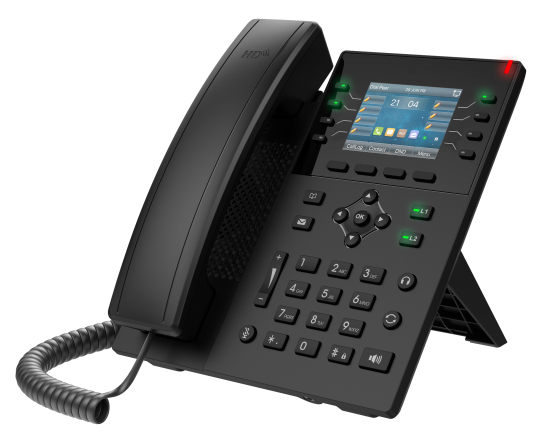

The HY-01S is an enterprise-grade Gigabit color screen IP phone featuring HD voice, a 320x240 2.8-inch color display, Gigabit Ethernet support, 12 SIP accounts, PoE power supply, built-in Bluetooth, external EHS wireless headset or USB adapter connectivity, and rich features like multi-party conference calling. It meets diverse enterprise application needs while delivering an exceptional user experience.

Downloads

Contact Us

Product Features

Hardware and Deployment

Line Power Supply Installation Mode

01

Hardware and Deployment

Line Power Supply

12 SIP lines, Ethernet Power Supply (PoE), power adapter sold separately, clear color display.

Mounting Options

Supports desktop / wall-mount (wall mount accessories sold separately), adapts to various office environments.
Storage and Connectivity

Information Management Wireless Adaptation

02

Storage and Connectivity

Information Management

Local and network phonebooks each hold 1000 entries, call logs store 1000 records, with support for blacklists and whitelists.

Wireless Compatibility

Bluetooth 4.2 connects to headphones/phones, compatible with mainstream wireless headsets, supports Wi-Fi dongle expansion.
Calls and Assistance

Basic Calling Advanced Features

03

Calls and Assistance

Basic Calling

Dialing, muting, and other operations; supports caller ID, speed dialing, and 6-party conferencing.

Advanced Features

Call forwarding/pre-forwarding, hold and jump transfer; supports call recording, customizable keys, and network synchronization.

Product Specifications

Display

2.8-inch (320x240) color screen
Keyboard

39 keys
RJ9 port x2

Joystick x1, Headset x1
RJ45 port x2

Network x1, PC x1 (Network Bridge Mode)
SB 2.0 Port x1

Standard A, for connecting USB Wi-Fi adapter or USB flash drive
DC Port x1

Φ5.5x2.1x10mm
DC Input

DC5V/2A
Operating Temperature

0~45℃
Relative Humidity

10~95%
Mounting Options

Desktop Mount / Wall Mount (requires separately purchased wall mount kit)
Color

Black
Product Dimensions

Desktop Mount (Angle 1: 45°): 181 x 175.75 x 184.4 mm
Package Dimensions

283x210x73 mm
Outer Carton Dimensions

440 x 390 x 304 mm (10 units per carton)
