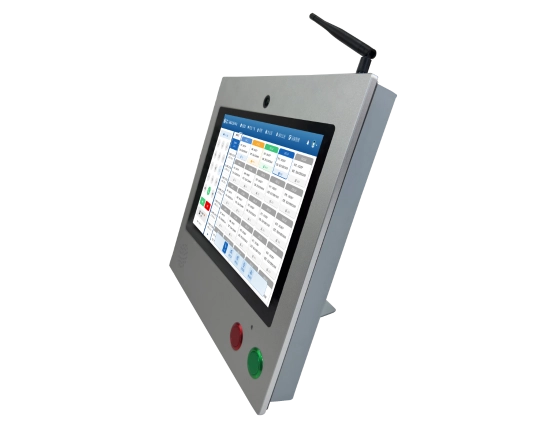

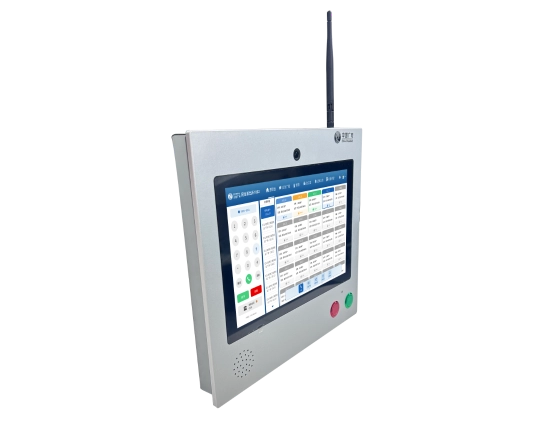

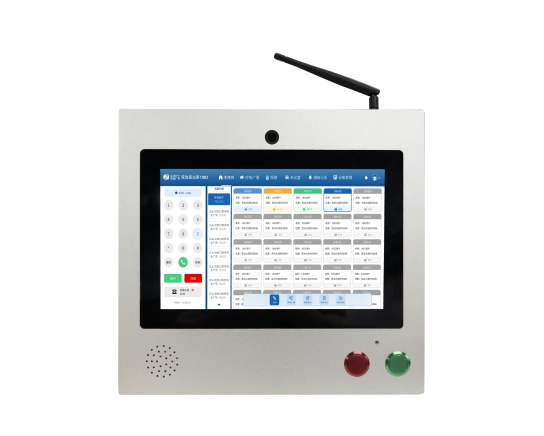

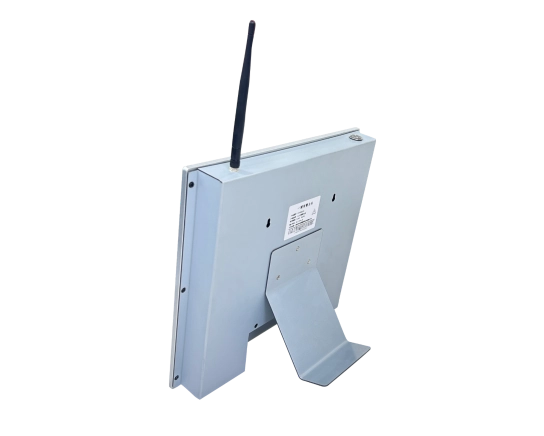

One-Touch Emergency Alarm Terminal
HY-B3001B
The One-Touch Alarm Terminal is an intelligent emergency device deployed in public spaces and commercial districts. It integrates ultra-fast response, audio-visual interaction, and high-reliability surveillance video linkage to enable coordinated action among nearby terminals, video conferencing, and public notifications. A single touch triggers an alarm, fostering mutual assistance within the surrounding commercial area. The police dispatch platform automatically links to electronic maps to optimize officer deployment. Application scenarios span high-traffic areas such as schools, streets, parks, and subway stations. By integrating with firefighting and medical systems, it forms a closed-loop “detection-alert-response” process, fortifying the safety defenses of smart cities.
ProductFeatures
  • Rapid Emergency Response
    One-touch trigger mechanism Signal transmission in seconds
    01
    Rapid Emergency Response
    One-Touch Trigger Mechanism
    Features prominent red and green mechanical buttons. Pressing the red button triggers the alarm instantly—no complex operations required. Elderly individuals and children can activate it quickly, preventing operational barriers during emergencies.


    Second-Level Signal Transmission

    Uploads alarm signals to public security platforms and nearby alert terminals within 1 second via 4G/5G or fiber optic networks. Simultaneously pushes real-time scene information, reducing response times by over 80% compared to traditional alarm systems.


  • High-definition audio-visual interaction
    Real-time on-site data collection Two-way intercom communication
    02
    High-definition audio-visual interaction
    Real-Time On-Site Capture
    Built-in 2-megapixel HD camera supports 1080P video recording with infrared night vision, capturing scenes around the clock to provide visual evidence for incident assessment.


    Two-Way Communication

    Omnidirectional microphone + 5W speaker combo enables clear dialogue between dispatchers and callers, allowing remote questioning for precise situation analysis.


  • Precision Positioning and Dispatch
    Dual-Mode Positioning and Tracking Intelligent Police Force Deployment
    03
    Precision Positioning and Dispatch
    Dual-Mode Positioning Tracking
    Integrated GPS/BeiDou positioning module with positioning accuracy ≤1 meter. Synchronized with electronic maps, the dispatch platform instantly displays precise locations, eliminating vague address descriptions.


    Intelligent Police Resource Allocation

    Automatically retrieves nearby police deployment data to generate optimal response routes, reducing average arrival times to 5-8 minutes.


  • Exceptional Environmental Adaptability
    Rigorous Protection Design Extreme Condition Tolerance
    04
    Exceptional Environmental Adaptability
    Rugged Protection Design
    The housing features a 6mm brushed aluminum plate with IP65 (dustproof and waterproof) and IK10 (impact-resistant) ratings, withstanding rain, collisions, and other external damage.


    Extreme Environment Tolerance

    Stable operation from -30°C to 60°C. Equipped with a backup power supply, it continues functioning during power outages or network interruptions, ensuring round-the-clock availability.


  • Multi-system coordinated response
    Cross-departmental Collaborative Management IoT Device Integration
    05
    Multi-system coordinated response
    Cross-departmental collaborative response
    One-touch emergency alerts trigger simultaneous coordination among public security, firefighting, and medical services. For instance, fire incidents are automatically forwarded to firefighting platforms, enabling multi-agency synchronized response.


    IoT Device Integration

    Can be connected to IoT devices such as smoke detectors and gas detectors to form a closed-loop system of “anomaly detection - alarm triggering - response handling,” such as automatically triggering an alarm in the event of a gas leak.


  • Empowered by Intelligent Technology
    5G Low-Latency Transmission AI Behavior Recognition
    06
    Empowered by Intelligent Technology
    5G Low-Latency Transmission
    Next-generation terminals equipped with 5G modules support real-time 4K video transmission with latency under 200ms, delivering high-definition live footage for remote command and control.


    AI Behavior Recognition

    Integrating AI algorithms with surveillance equipment enables automatic detection of abnormal behaviors such as fights or falls, triggering instant alerts to enhance preemptive warning capabilities and reduce incident occurrence.


Product Specifications
  • Housing Material
    6mm brushed aluminum plate (corrosion-resistant, impact-resistant)
  • Protection Rating
    IP65 (dustproof and waterproof), IK10 (vandal-resistant)
  • Dimensions
    300mm × 280mm × 46mm (wall-mounted design)
  • Weight
    2.5kg (including bracket)
  • Mounting Options
    Wall-mounted, desktop-mounted (screw-fixed)
  • Network Support
    4G/5G full network compatibility, WiFi 6, fiber optic (optional)
  • Transmission Protocol
    GB/T 28181、SIP
  • Communication Latency
    5G transmission <200ms
  • SIM Card Support
    Dual SIM slots (primary/backup redundancy)
  • Camera
    2MP, 1080P HD, supports infrared night vision (8m effective range)
  • Microphone
    Omnidirectional array microphone (10m pickup radius)
  • Speaker
    5W high-power speaker (30m clear communication)
  • Video Storage
    Local 128GB TF card + 7-day cloud loop storage
  • Positioning Methods
    GPS/BeiDou dual-mode + base station assisted positioning
  • Positioning Accuracy
    ≤1 meter (open areas)
  • Map Services
    Baidu / AutoNavi real-time display, supports geofence configuration
  • Operating Temperature
    -30℃至 60℃
  • Operating Humidity
    ≤95% (non-condensing)
  • Shock Resistance
    IEC 60068-2-6(10-500Hz,20g)
  • Electromagnetic Interference Resistance
    Complies with GB/T 17626.3 (30V/m)
  • Main Power Supply
    DC 12V
  • Domestic Certifications
    CCC、CSP
  • Testing Report
    Certified by the Ministry of Public Security's Safety and Police Electronic Product Quality Testing Center
